9. Databases > 9.7 Address Database
9.7.3 Parameters of Address Directory
Currently, there is only 1 table: 'address1'.

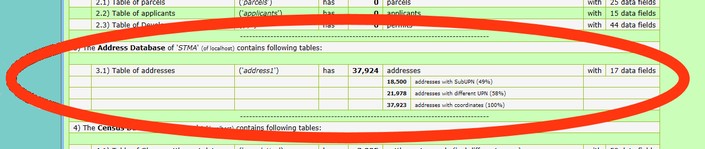

The current status of the Address Database can be seen in LUPMIS on Settings > Database statistics
Table structure of 'address1' of the Address Database:
| Field | Type | Remarks |
| id | integer | |
| upn | character (13) | |
| subupn | character (20) | |
| streetname | character (50) | |
| streetname_prv | character (50) | |
| housenumber | character (30) | |
| town | character (30) | |
| locpl | character (30) | Local Plan, sector layout (GIS dra file) |
| utm_x | integer | x in UTM 30 (m) of any point in the parcel (from GIS) |
| utm_y | integer | y in UTM 30 (m) of any point in the parcel (from GIS) |
| utm_x_bldg | integer | x in UTM 30 (m) of a building / property (if SubUPN) |
| utm_y_bldg | integer | y in UTM 30 (m) of a building / property (if SubUPN) |
| flooor | integer | Observe the 3 o (to avoid conflict with the computer command 'floor') |
| area_m2 | integer | (from GIS) |
| remarks | character (100) | |
| lastenry_person | character (10) | |
| lastentry_date | date |
Technical note: It is envisaged, that a table 'history' with logs of all parcels/properties/businesses will be installed in future.
