8. LUPMIS Tools > 8.5 Permit Tools > 8.5.5 Permits
8.5.5 Permits
8.5.5.1 Permits: List & Map
b) Permit status (including map)
- a) Lists and maps

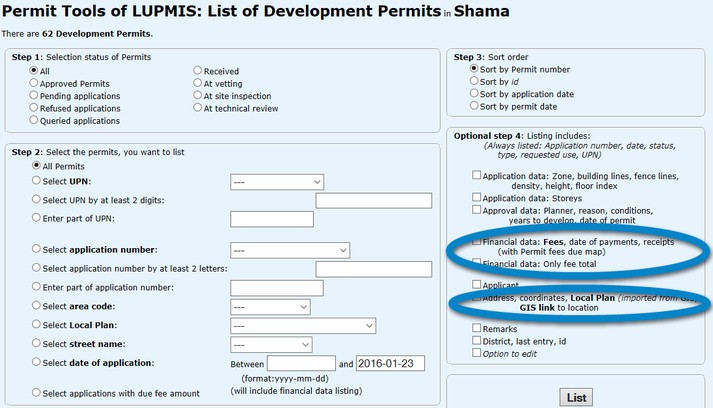

Permits with all theirs data can be listed with Permit Tools > Development permit > List / Map. There is a wide range of selecting a subset of permit, by their approval status and which data should be presented, with particular attention to the financial status or summary (see also Chapter 8.5.5.4) and for their location with x/y coordinates.

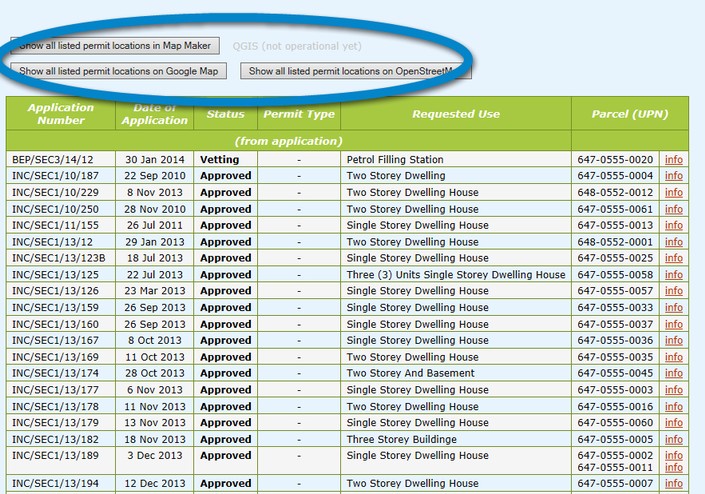

An example of the most basic data listing is shown below:
The second last record in the sample above shows a case, where a permit has been approved for 2 parcels (with 2 UPN).
Maps can be created with the buttons at the top of the listing.
- b) Permit Status

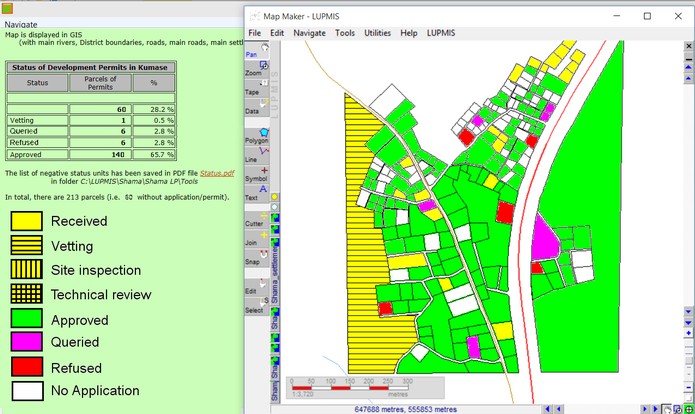

Permit Tools > Development permit > Permit status map will generate a status map of the permits in a Local Plan:
Another example:
This map shows the current status of the permitting process (yellow: under process, green: approved, red: refused).
- - - - -
Survey points of parcel can be listed with the additional option at Permit Tools > Siteplan > Tick 'List of survey points':
