7.4.4 Layout of Framework
Level of expertise required for this Chapter: Intermediate; specifically for LUPMIS @ TCPD

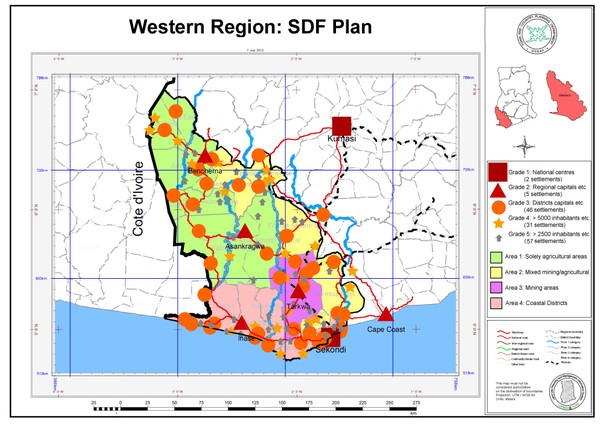

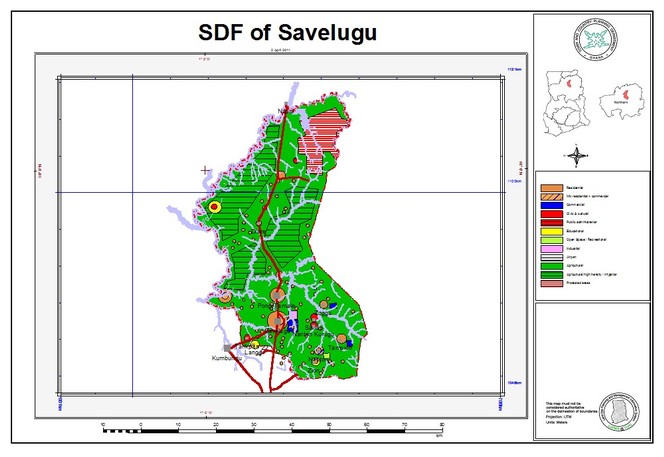

If installed, it is the easiest and strongly recommended, to use the LUPMIS 'Printing Tools' to print the final SDF map:
- - - - -
This automatically includes all map requirements for the final print, which are:
LUPMIS remark (see example at end of Chapter 6.3)
TCPD logo
Scale bar (see Chapter 6.6.2)
Map templates will incorporate all these ‘map furniture’ (see Chapter 6.5).
The units and colours have to be standardized for all TCPD Frameworks, as defined in Annex 6.2 and Annex 5.
