8. LUPMIS Tools > 8.2 Drawing Tools
8.2.12 Format Conversion
Level of expertise required for this Chapter: Intermediate; specifically for LUPMIS @ TCPD
These Tools covers all the conversion options of vector and raster formats:
- a) Export for Display in OpenStreetMap / Google Maps
This export version of DRA files to Internet-format creates an HTML files for direct display in OpenStreetMaps or in Google Maps: Drawing Tools > Format conversion > Format conversion: Vector > Export for display in OSM / Google. It can convert both DRA and SHP files.
Be aware, the main focus of this Tool is the immediate display. It does not create a KML or GML file. For those conversion, other Tools exist (see below).
Technical remark: It creates a JavaScript part in an HTML file.

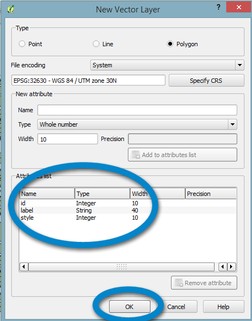

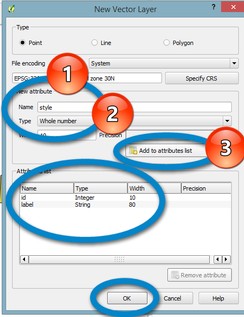

After selecting the DRA file, you carefully specify the type of file (polygon vs line vs point) and of display, see below some examples. The options for color appearances, line widths or point sizes are based on the style number in the DRA file.
Examples of output:
- b) Export DRA to KML / Internet
The most powerful export tool from DRA files to Open-Source format is the Drawing Tool > Format conversion > Format conversion: Vector > Export DRA to KML / Internet:

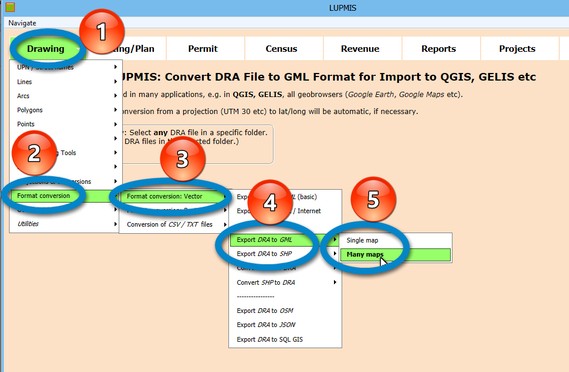

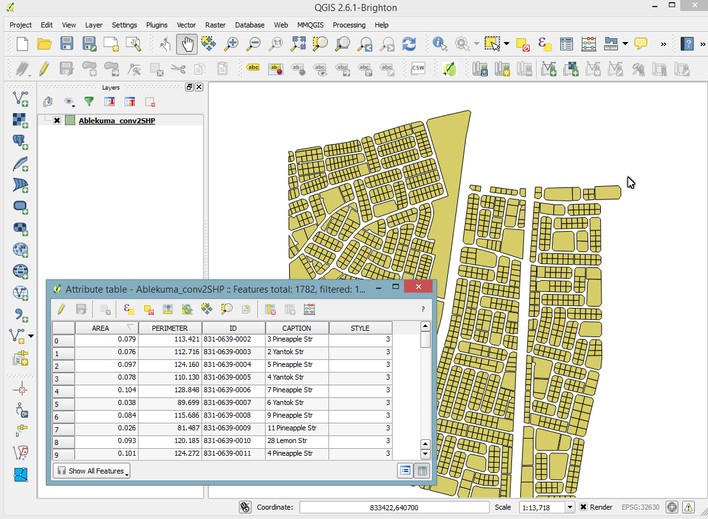

- c) Export DRA to GML / SHP
To convert your DRA files of Map Maker to GML format for other GIS applications, such as QGIS, GELIS, etc or to SHP format for ESRI software, use this Drawing Tools > Format conversion > Format conversion: Vector > Export DRA to GML (or SHP) > Single / Many maps.
With the 'Many maps' option you can convert all DRA files in the selected folder. Just pick any DRA file in a folder, and it will convert all DRA files of that folder.

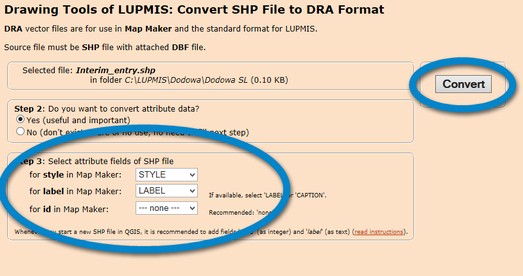

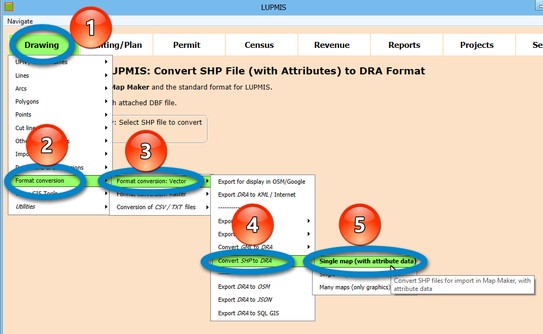

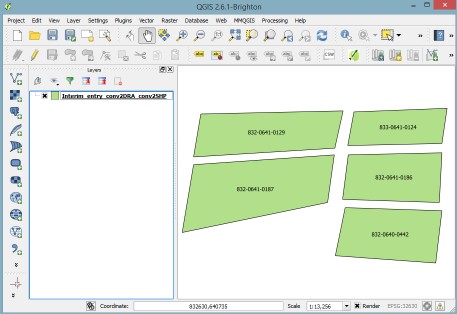

- d) Convert GML / SHP to DRA

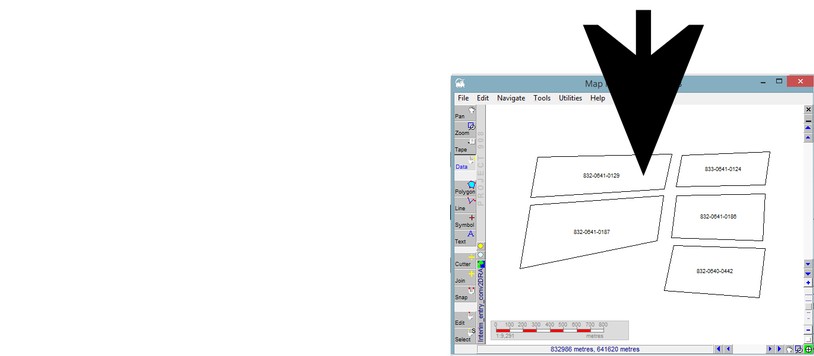

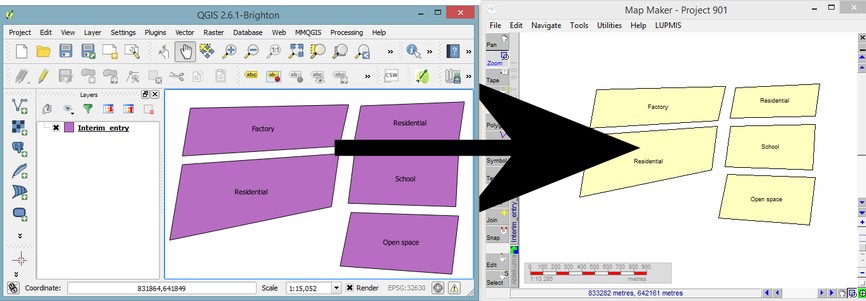

Similar to the process above, this Tool converts all GML (or SHP) files of other applications to DRA file for use in Map Maker: Drawing Tools > Format conversion > Format conversion: Vector > Convert GML (or SHP) to DRA > Single / Many maps.
Recommended:
- e) Export DRA to OSM / JSON
- e) Convert Raster
- f) Export CSV / TXT to KML / Internet
