8.1.4 Permits production
8. Database > 8.1 Permit Database
8.1.4 Permit Production
Level of expertise required for this Chapter: Advanced
With all data in the system, a permit can be printed automatically with insertion of the Site Plan:
- - - - -
It is evident, that a permit can only be printed, if an application has been approved. If negative, the printout is not possible.

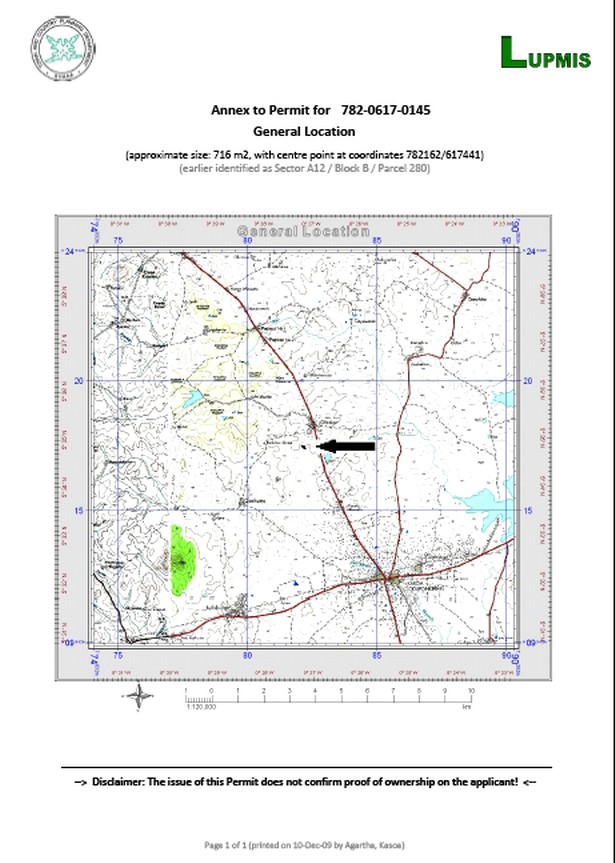

As an annex, not as a legal document, a general location map with the parcel can be printed:
Note: Following input layers will be displayed for the general location map:
- ..._roads, with any style (0 or 1 or...)
- ..._roadsmain, with style 90
- ..._rivers, with style 101-105
- ..._villages, with levels 1-4 at style 101-104
- ..._district, with style 80
- ..._waterbodies, with style 24
For example, Dodowa_roads in folder C:\LUPMIS\Dodowa dra\.
All styles refer to Default.stl in the default configuration (C:\Map Maker\Configuration\Style library). See also Annex 6.6 for style definitions.
- - - - -
With all data available, also the Structure Plan and Local Plan can be printed with pre-defined layout. Scale, paper size and orientation have to be specified, the centre point of the map can be choosen (or default, if centered on the plan), additional layers can be added manually in Map Maker.
Sub-Menu:
- 8.1.1 General
- 8.1.2 Permit DBMS
- 8.1.3 QC of GIS
- 8.1.4 Permits production ←
- 8.1.5 Notes for Permit Database
