A5. Styles
Annexes
Annex 5: Styles
Level of expertise required for this Chapter: Advanced; specifically for LUPMIS @ TCPD
Following style libraries (definitions of colours, line widths, point symbols etc) are currently available as standard LUPMIS styles:
A) For plans:
B) For drawing:
- Lines_AllBlk: All lines are in black (no matter which style)
- Lines_AllBlu: Blue, -"-
- Lines_AllBroken: Broken, -"-
- Lines_AllBrokenFat: Broken fat, -"-
- Lines_AllCyn: Cyan, -"-
- Lines_AllGrn: Green, -"-
- Lines_AllMag: Magenta, -"-
- Lines_AllRed: Red, -"-
- Lines_AllYel: Yellow, -"-
- LinesBkRdGrBlYlMgCy: Line style 1 is black, style 2 red, style 3 green, style 4 blue, etc
- LinesBlYlMgCyBkRdGr: -"-
- LinesCyBkRdGrBlYlMg: -"-
- LinesGrBlYlMgCyBkRd: -"-
- LinesMgCyBkRdGrBlYl: -"-
- LinesRdGrBlYlMgCyBk: -"-
- LinesYlMgCyBkRdGrBl: -"-
- Polys_AllBlk: All polygons are in black (no matter which style)
- Polys_AllBlu: Blue, -"-
- Polys_AllGray: Gray, -"-
- Polys_AllGrn: Green, -"-
- Polys_AllMag: Magenta, -"-
- Polys_AllRed: Red, -"-
- Polys_AllTransp: Transparent, -"-
- Polys_AllYel: Yellow, -"-
C) For specific thematic maps:
- Altitude ramp 1-10: For altitude maps with upto 10 units
- Altitude ramp 1-22: For altitude maps with upto 22 units
- Color ramp red 1-10: For intensity maps with upto 10 units
- Colors different
- Colors different pale
D) Default
More about styles and style libraries in Chapters 6.2 and 6.6.1.
- - - - -
Names are self-explanatory. tl stands for translucent (half-transparent), op for opaque (not transparent). Latest update of definitions can be found in following Annex 6.
- - - - -

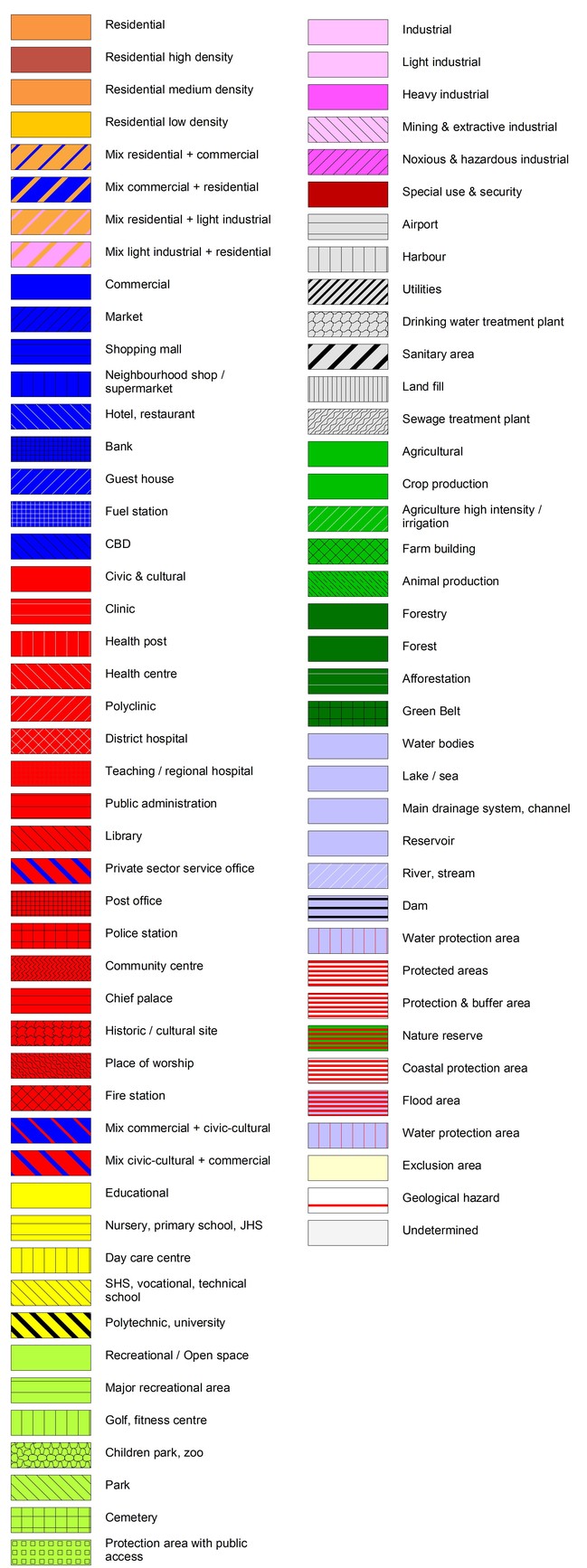

Colors ('styles') for land use mapping (classification in Annex 6.1):
- - - - -

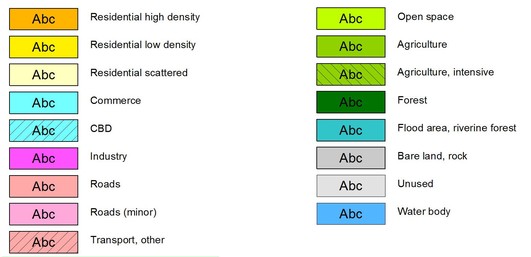

Colors ('styles') for SDF (classification in Annex 6.2):
- - - - -
Colors ('styles') for Local Plan (classification in Annex 6.5):
- - - -
Colors ('styles') for rivers 1st – 5th category (classification in Annex 6.6.2):
- - - - -
Note: Minor recent modifications might not be documented.
