1.5 Measure
1. GIS handling
1.5 Measure
Level of expertise required for this Chapter: Beginner

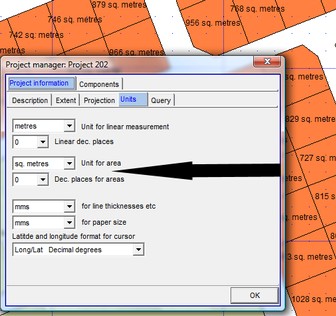

A) To measure the distance between two locations, use the Tape-tool from the toolbar left. Click on the tool, then point to the starting point, and then to the end point. Distance is shown in meters.
B) You can also measure areas on-the-fly with right-mouse > Measurement > Area measurer and delineate the area.
C) If the layer is hit-able, you can use the Data-tool from the toolbar left to retrieve measurements, i.e. for polygons, their area and their perimeter. See Chapter 1.4 for the procedure to make a layer hit-able.
D) For more measurements, including areas, see Chapter 3.5.
- - - - -
LUPMIS exercise: On layer Ghana_regions measure the distances between different regions of Ghana.
